Karazzo 150W DC Converter Voltage Regulator 10-32V/8-16V to 8-46V 12/24V Boost Step Up Module
- Product Code: k-003
- Availability: In Stock
$25.99
Ex Tax: $25.99
Brand:Karazzo Ultra-dense reinforced aluminum radiator allows lower and more stable working temperature Has a green LED indicator which will light when converter works;with 4 M3 screw holes, convenient to install Unique PCB hollow design, reducing possibility of unstable working caused by high temperature Sim...
- Brand:Karazzo

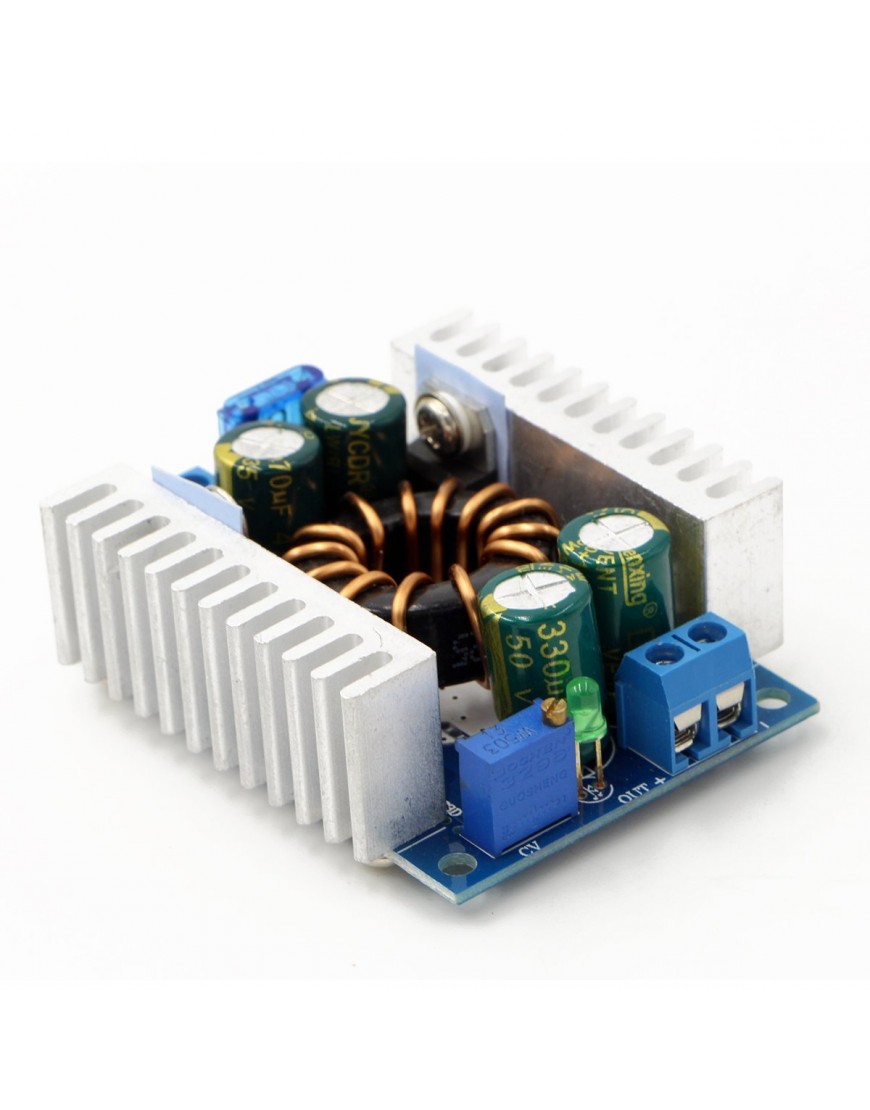

- Ultra-dense reinforced aluminum radiator allows lower and more stable working temperature
- Has a green LED indicator which will light when converter works;with 4 M3 screw holes, convenient to install
- Unique PCB hollow design, reducing possibility of unstable working caused by high temperature
- Simple wiring connection: V-IN input, V-OUT output(terminals don't need solder). Has high-frequency low-impedance capacitor of 2x 470uF/35V(input)and 2x 330uF/50V(output)
Features:
Module Name: 150W boost module
Module properties: non-isolated module
Minimum voltage difference: 0V

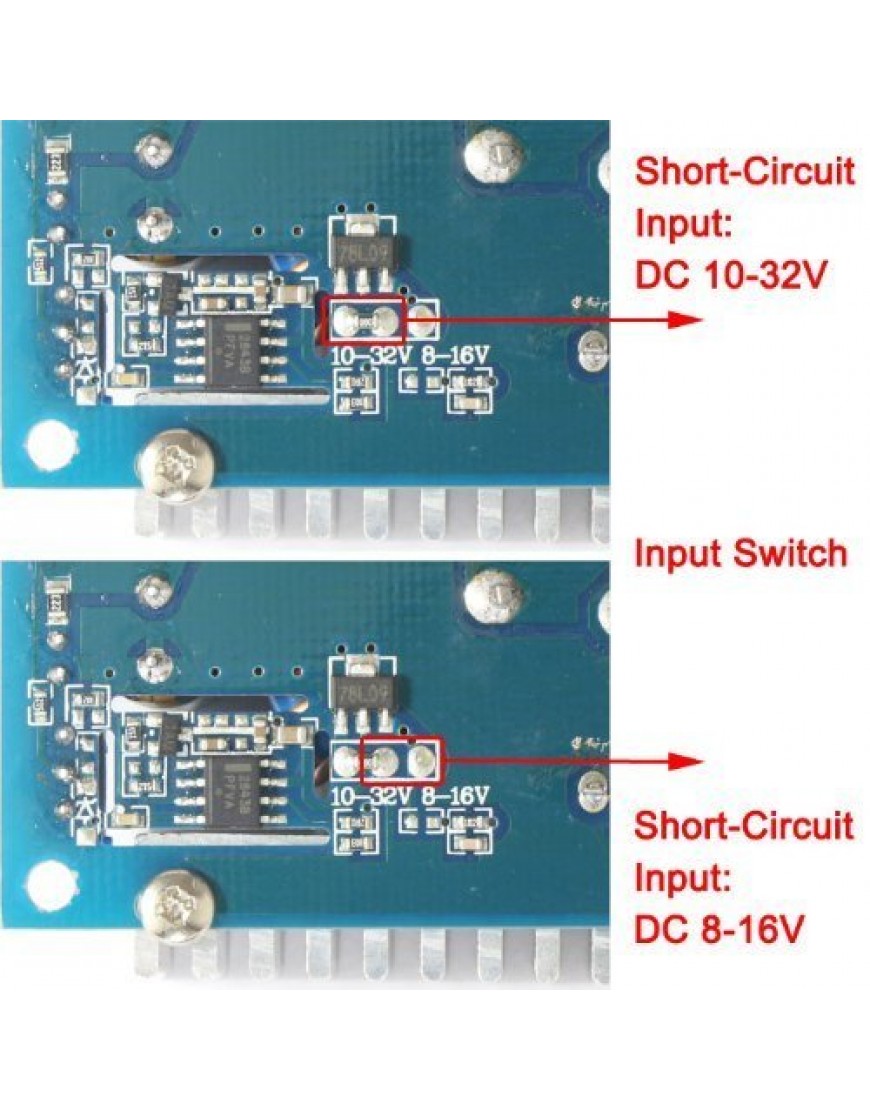

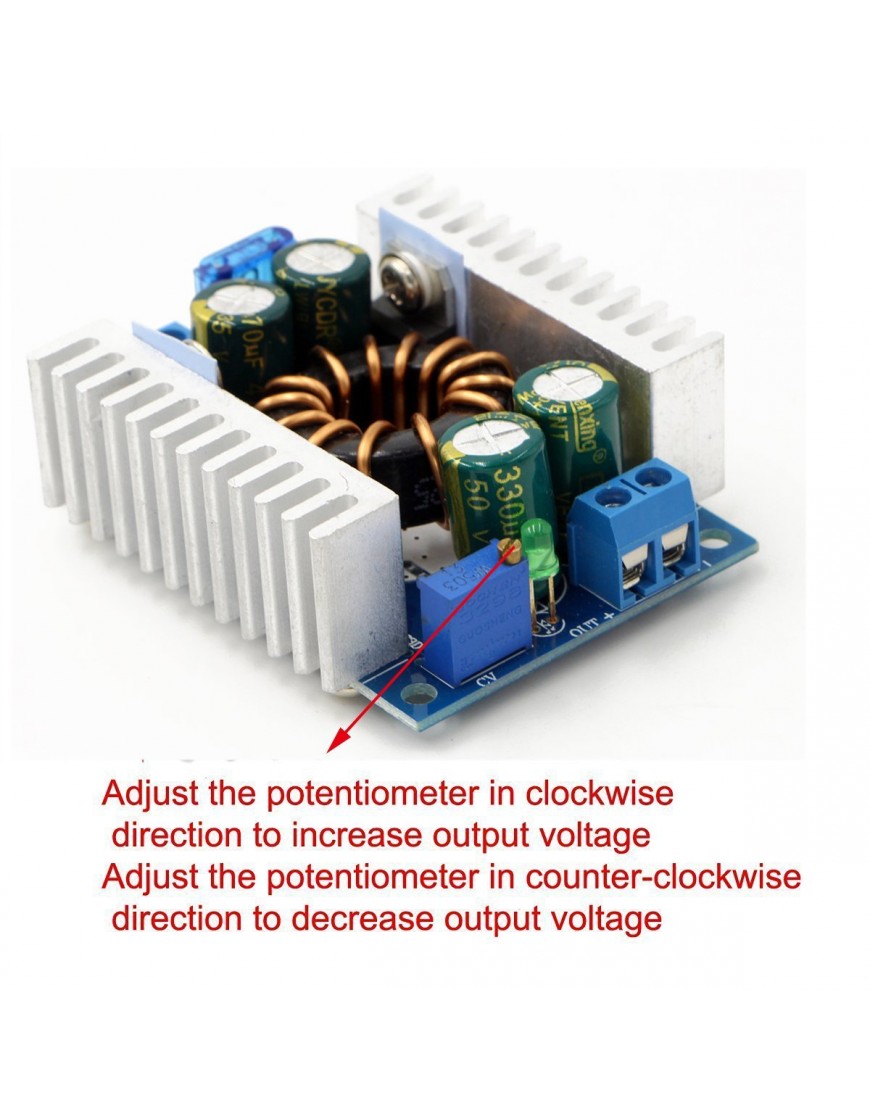

Input/output Voltage 1 : When Input DC 10-32V,Ouptput 10-46V((adjustable, default 19V)
Input/output Voltage 2 : When Input DC 8-16V,Ouptput 8-46V(adjustable, default 19V)
Input Current: 16A Max. (exceed 8A please enhance heat dissipation)
Output current: 8A Max. (exceed 4A please enhance heat dissipation)
Quiescent operating current: 15mA (12V to 20V, higher output voltage will increase the quiescent current)
Output power: 90W(natural cooling), 150W(enhance heat dissipation)
Capacitances:2x 470uF/35V(input) ; 2x 330uF/50V(output)
Operating temperature: -40°c to +85°c
Working frequency: 380KHz
Conversion efficiency: up to 95%
Operating indicator: Yes
Short circuit protection: None
Input reverse polarity protection: None (If need please install diode at input port)
Installation: 4x 3mm screws
Wiring: Terminals, Needn't solder, V-IN input, V-OUT output

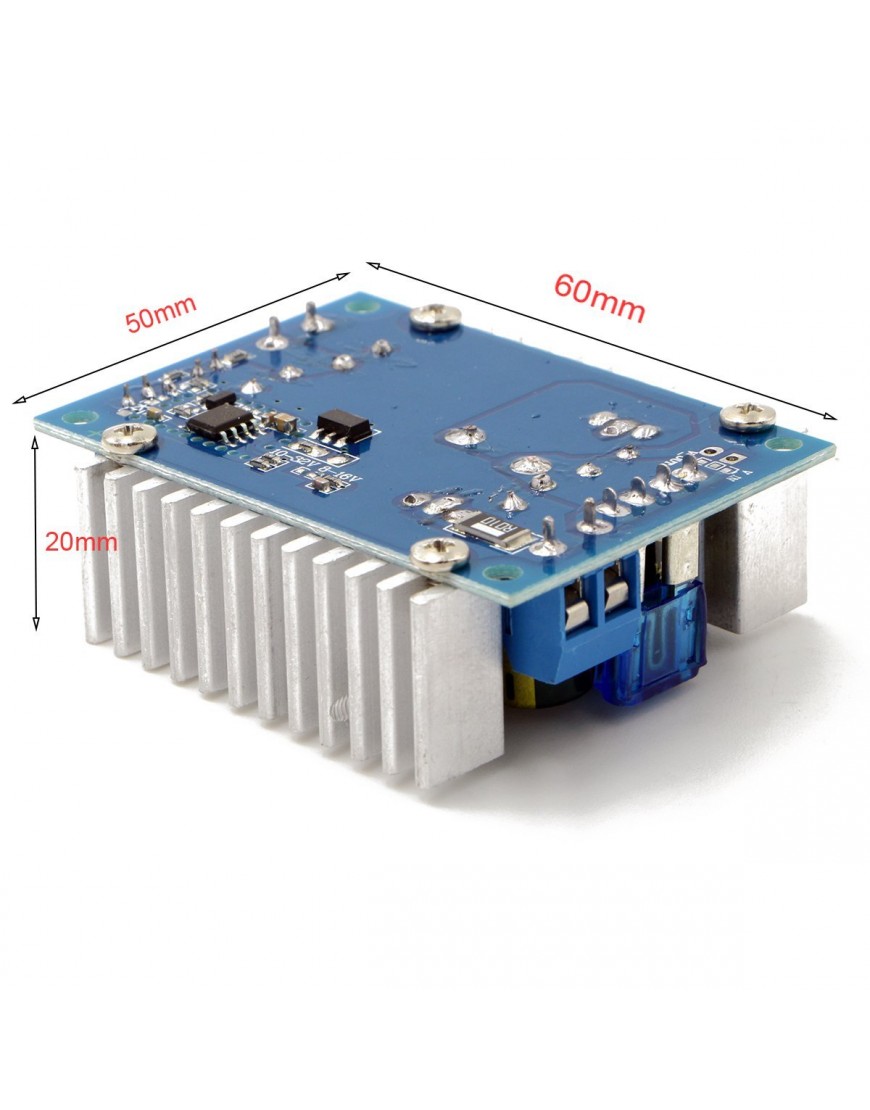

Module size: 60mm x 50mm x 20mm
Testing:
16V to 19V, output current 3A, efficiency 94%
12V to 20V, output current 5A, efficiency 89.5%
12V to 30V, output current 3A, efficiency 89.2%
24V to 42V, output current 3A, efficiency 95.2%
Some Applications:
DIY a voltage Regulator, adjustable.
The power supply for electronic equipment.
Used as a car power supply, Power supply for laptop,PDA, or other digital products
DIY a notebook mobile power
Package Include:
1x DC Boost Converter
